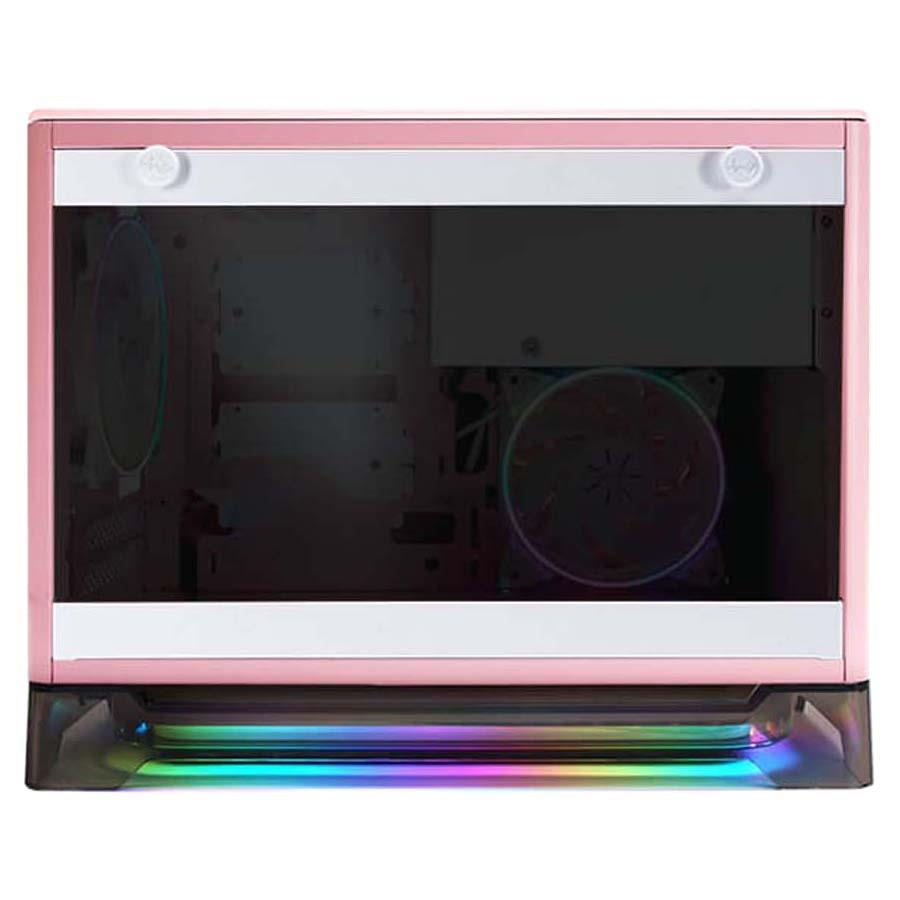

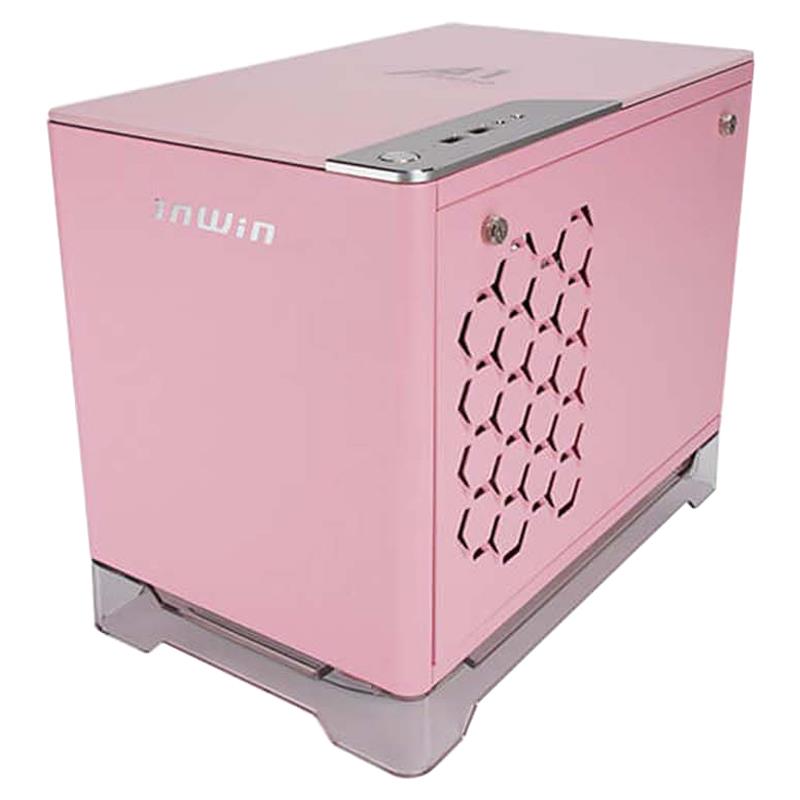

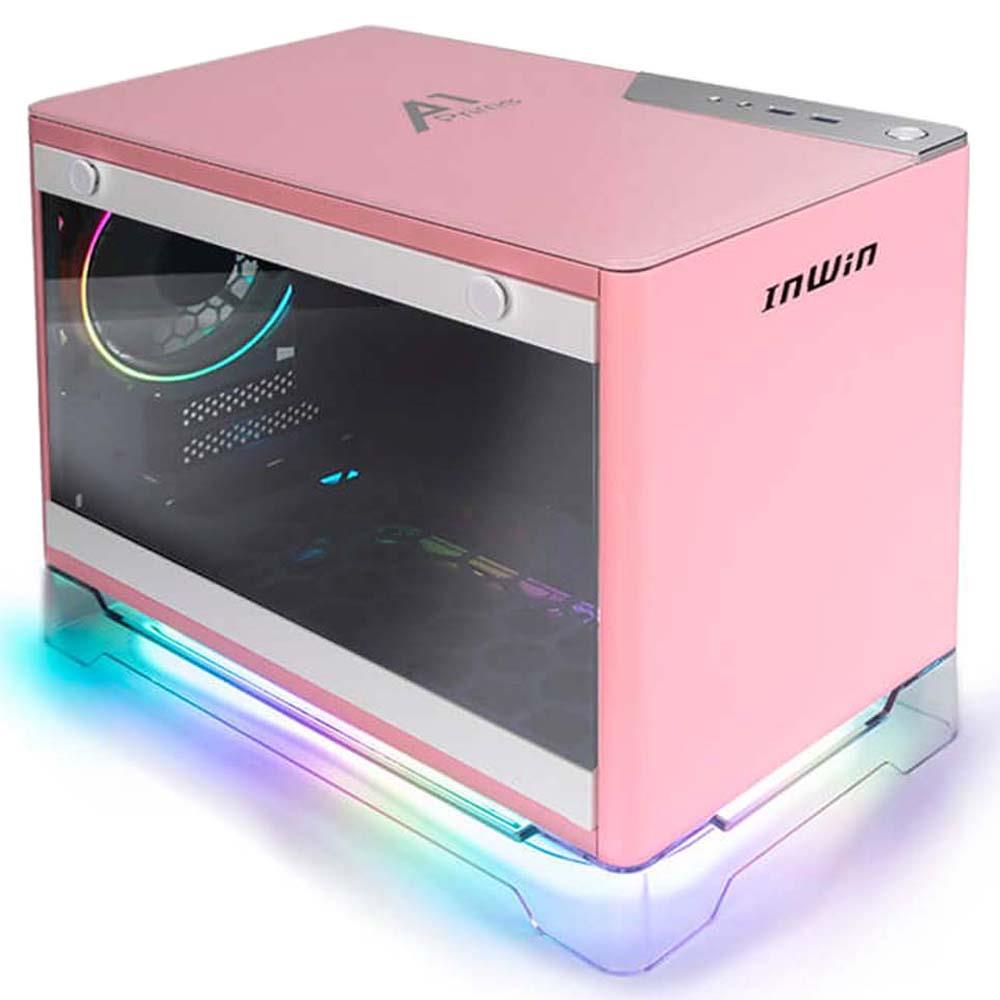

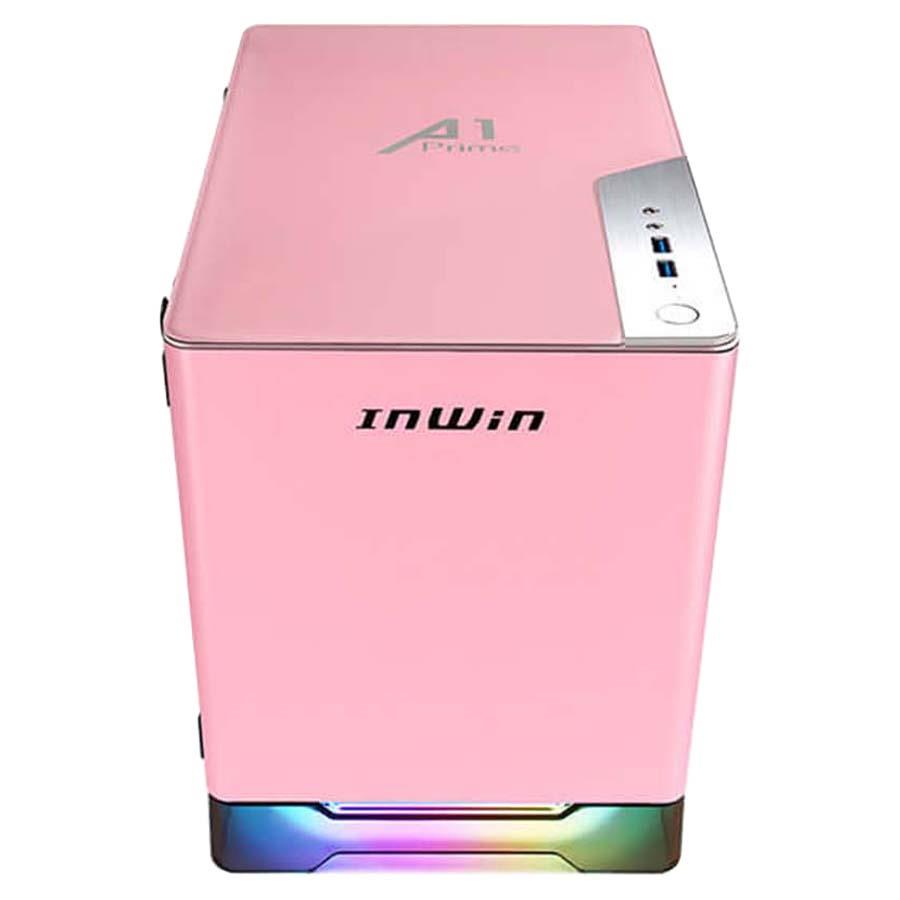

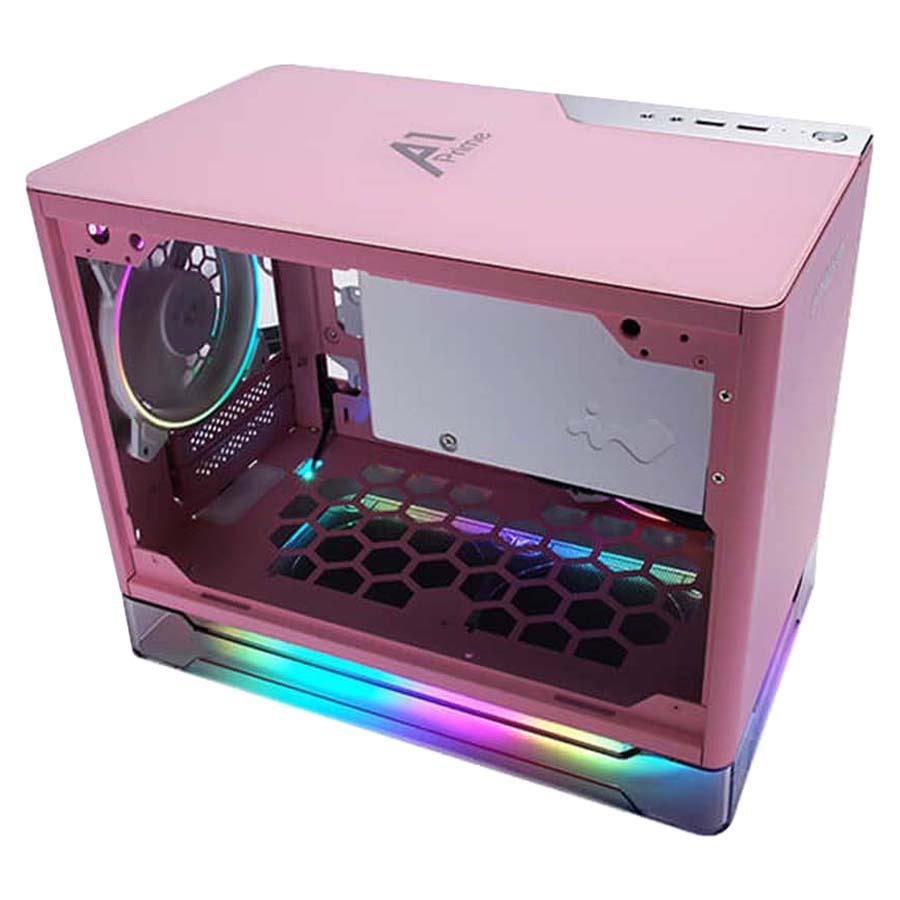

InWin A1 Prime Mini-ITX Case Pink with 750W PSU Gold
by InWin
Original price
$299
-
Original price
$299
Original price
$299
$299
$299
-
$299
Current price
$299
Specifications
| Model Number | A1-PRIME-PINK |
| Model | A1 Prime |
| Colour | Pink |
| Case Type | Mini-ITX Tower |
| Materials | SECC, Tempered Glass, Aluminium, Plexiglass |
| M/B Compatibility | Mini-ITX |
| Expansion Slots | 2 x PCI-E |
| Maximum Compatibility | VGA Card Length: 320 mm VGA Card Thickness: 55 mm CPU Heatsink Height: 160 mm |
| I/O Ports | 2 x USB 3.0 HD Audio |
| Internal Drive Bays | 2 x 2.5” |
| Thermal Solution Compatibility | Air Cooling Fans: Rear: 1 x 120 mm (Pre-Installed) Bottom: 2 x 120 mm Side: 1 x 120 mm (Pre-Installed) Water Cooling Radiator: Rear: 1 x 120 mm |
| Power Supply Compatibility | PSII: Intel ATX12V V2.52 InWin 750 W 80 Plus Gold PSU Included |
| Product Dimensions (L x W x H) | 343 x 210 x 231 mm 13.5" x 8.3" x 9.1" |
| Product Dimensions (L x W x H) with Screw & Handle Height | 357 x 224 x 273 mm 14.1" x 8.8" x 10.7" |
| Net Weight | 6.14 kg / 13.5 lbs |
| Connectors | 20 + 4 Pin Motherboard: 1 8 - Pin CPU: 1 8 (6 + 2) Pin PCI-E: 2 SATA: 3 |
| Model | P75F |
| AC Input | 100 - 240 Vac |
| Input Current | 8 - 10 A |
| Frequency | 50 - 60 Hz |
| Voltage | +12 V / +5 V / +3.3 V / -12 V / +5 VSB |
| Max. Output Current | 62.5 A / 22 A / 22 A / 0.3 A / 3 A |
| Max. Combined Power | 750 W / 120 W / 120 W / 3.6 W / 15 W |
| Total Power | 750 W |
