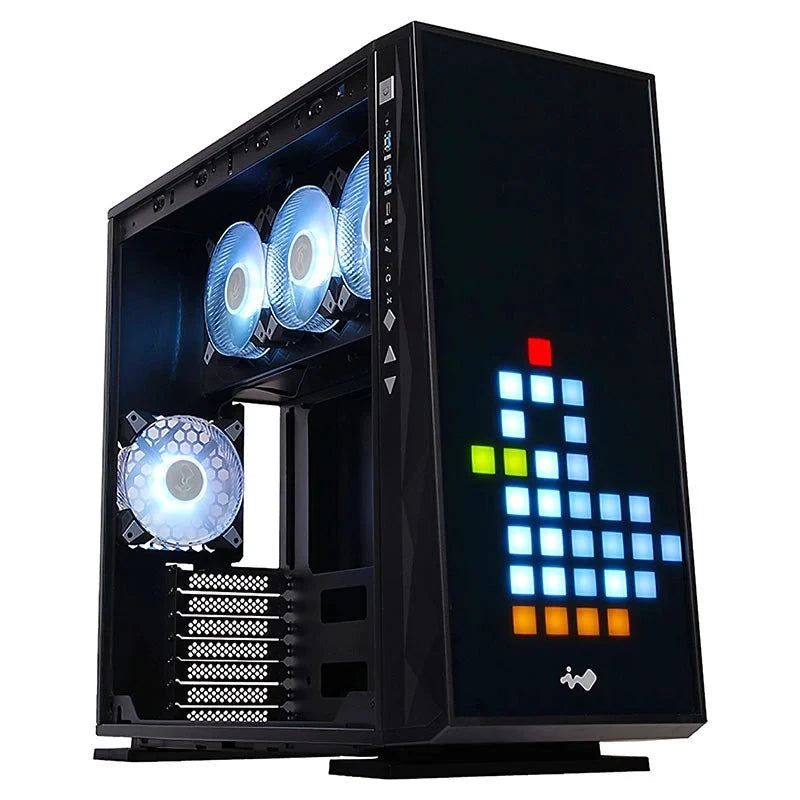

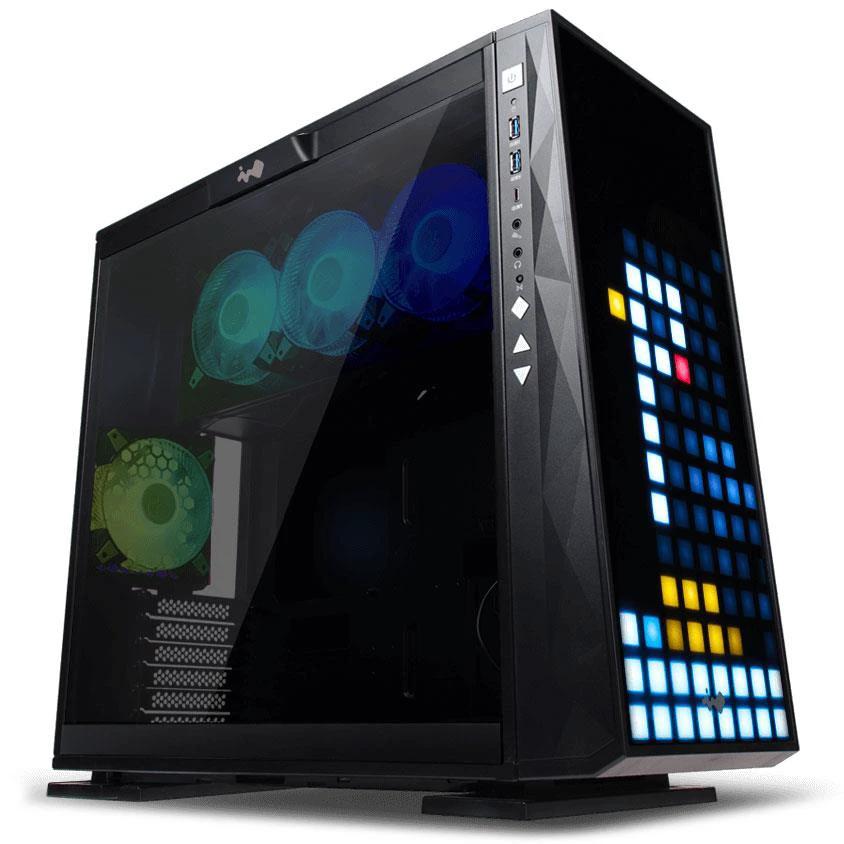

Inwin 309 ARGB Tempered Glass Mid-Tower ATX Case-Black
Brilliantly Bolder and Brighter
The 309 offers a different experience from the soft and conservative colors of the 307. The 309 is bursting with colors! It’s designed to enhance the visuals of any room, office or business!

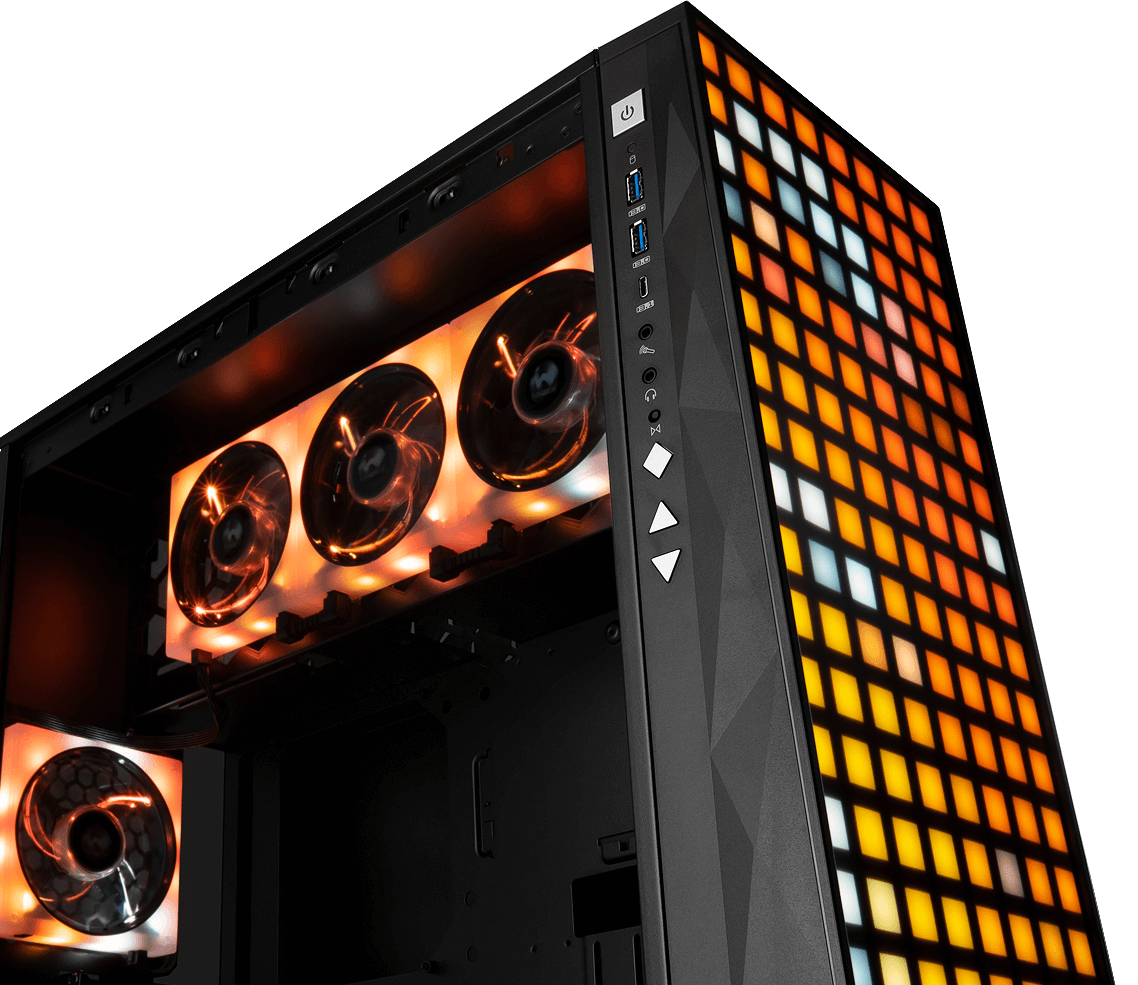

Lighten Up!
The 309’s front panel is equipped with 144 stunning addressable LEDs. There’s a total of 12 built-in lighting modes and you can quickly change each mode, as well as, adjust the brightness with buttons presented on the front I/O panel.
* The addressable cable can only be used with motherboards with addressable headers.

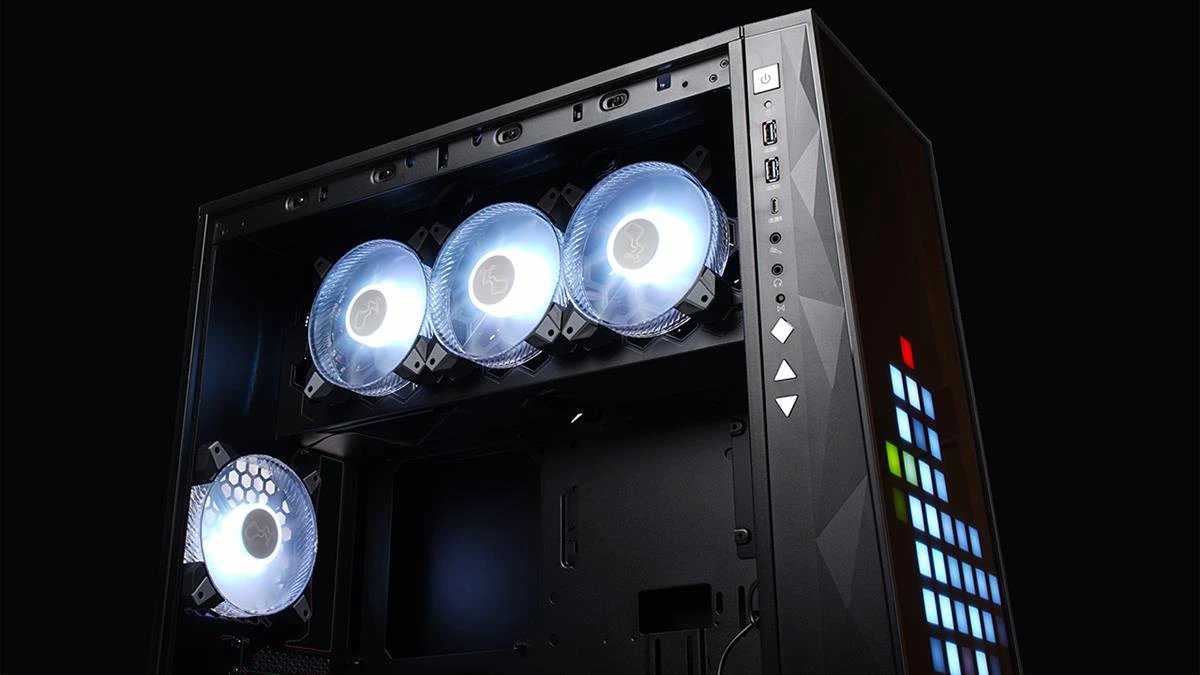

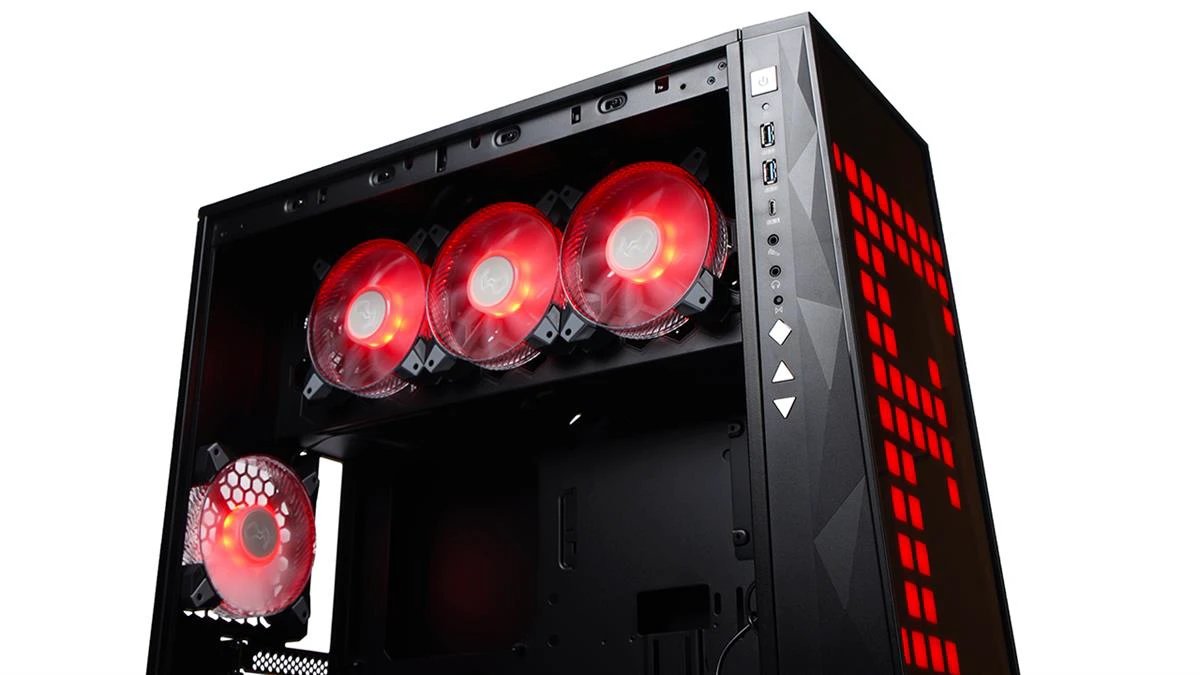

Lighting the Way for PC Hardware
The 309 pays tribute to PC hardware by lighting the stage for them! It will be equipped with four dazzling InWin EGO fans which contains 16 LEDs inside the silicon frame.
Learn More
12
Lighting Mode
7
Brightness Level
7
Light Speed Level
10
Fan Speed Level
Exclusive GLOW2 Software
Use our exclusive software to change the lighting or the frequency. The clean and simple interface is user-friendly and highly customizable.
Got Any Bright Ideas?!
The InWin exclusive GLOW2 software controls lighting effects and the provided EGO fans. Creation mode gives control to the user to design whatever they want on the front panel display.
Interactive Lighting Effects Brings Case to Life!
The 309 can interact with its surroundings! The heartbeat light effect reacts to the rhythm of music. So, turn on the jams and enjoy light show!
Versatile Liquid Cooling Support
There are three locations the 309 can accommodate liquid radiators; top, bottom (slim) and rear. A total of seven 120mm case fans can be mounted.
309 x Robot
309 x InWin
309 x Volcano
New designs from 309 Panel Design Competition!
Tired of having the same front panel on your computer chassis? Download the new designs or start your own creation for your 309 front panel!
Start to Create DownloadSpecifications
| Model | 309 |
|---|---|
| Part Number | IW-309-Black |
| Colors | Black |
| Case Type | Mid Tower |
| Materials | SECC, Tempered Glass, ABS |
| M/B Compatibility | 12" x 11" ATX, Micro-ATX, Mini-ITX |
| Expansion Slots | PCI-E x 7 |
| Maximum Compatibility | VGA Card Length: 350mm (Maximum) CPU Heatsink Height: 160mm |
| Front Ports | 1 x USB 3.1 Gen 2 Type-C 2 x USB 3.0 HD Audio LED & Fan Mode Button LED & Fan Control Buttons |
| Internal Drive Bays | 2 x 3.5" 2 x 2.5" (2 pre-installed, max. up to 3 bays) |
| Thermal Solution Compatibility | 1 x 120mm Rear Fan /120mm Radiator 3 x 120mm Top Fan /360mm Radiator 3 x 120mm Bottom Fan/360mm Radiator (Slim) (Numbers of fans pre-installed may vary based on different regions.) |
| Power Supply Compatibility | PSII: ATX12V - Length up to 200mm |

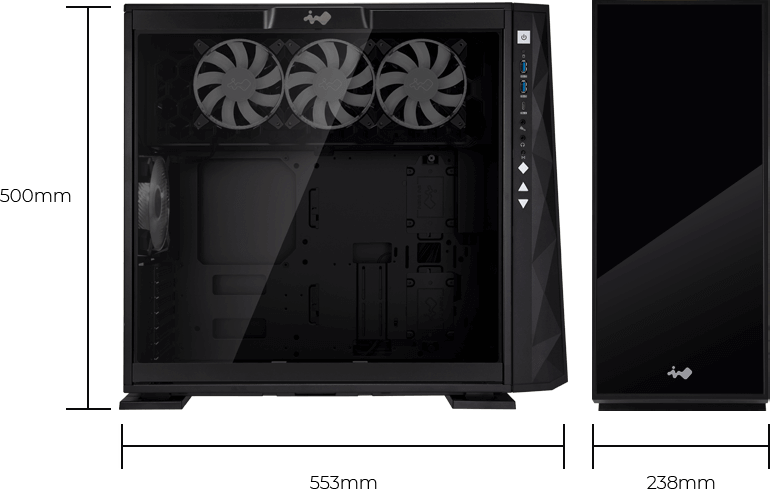

| Product Dimensions (H x W x D) with Screw & Handle Height |
500 x 238 x 553 mm 19.7" x 9.4" x 21.8" |
| Package Dimensions (H x W x D) |
335 x 618 x 706 mm 13.2" x 24.4" x 27.8" |
| Net Weight | 13.65kg / 30.1lb |
| Gross Weight | 17.06kg / 37.6lb |
| * Our products comply with RoHS regulation. * Specifications may vary based on different regions. * Extra fee for optional parts. |
|
