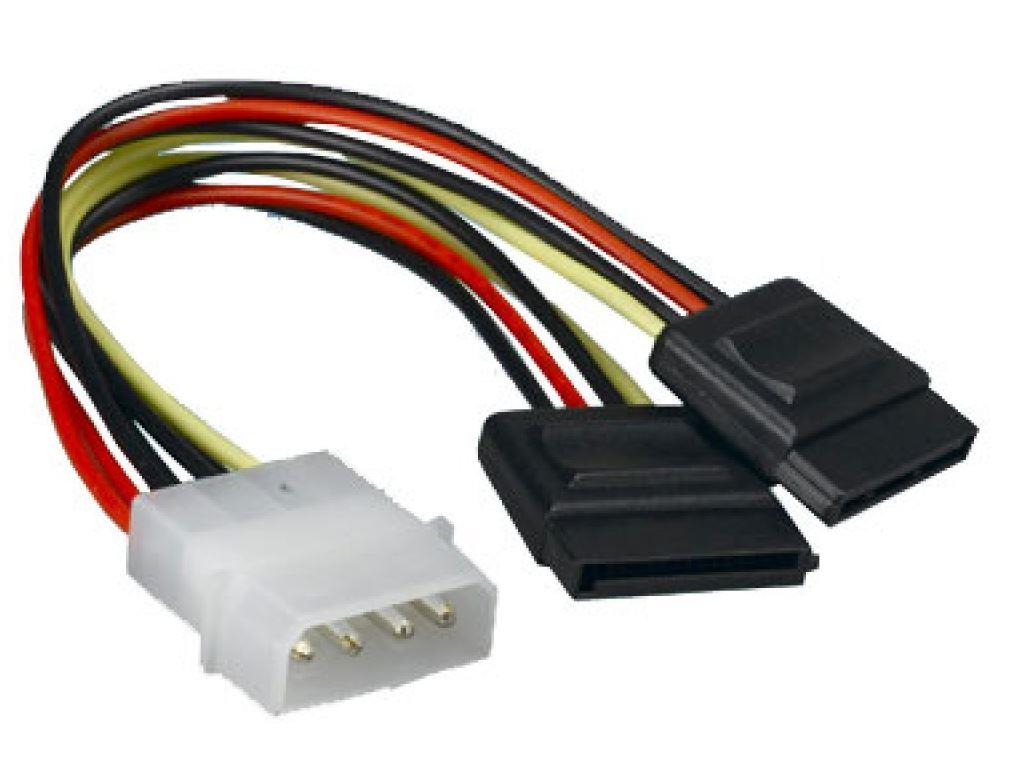

Astrotek Internal Power To SATA Molex Cable-4 Pins To 2x 15 Pins 18AWG Rohs

Designed for PC builders, IT technicians and homelab enthusiasts, the Astrotek Internal Power To SATA Molex Cable provides a clean, reliable means to power two SATA devices from a single 4‑pin Molex supply. Whether upgrading a desktop, refreshing a small server, or replacing a damaged power lead, this cable keeps critical drives fed without altering the PSU or motherboard wiring.

Technical specifications: 18 AWG copper conductors for robust, stable current delivery; one 4‑pin Molex connector (LP4) to two 15‑pin SATA power plugs. Colour‑coded wiring mirrors standard power rails: yellow for +12V, red for +5V, and black for ground, ensuring correct polarity and compatibility with common SATA devices. The assembly is RoHS compliant, emphasising safety and environmental responsibility.

Compatibility and system requirements: compatible with standard ATX power supplies that provide Molex outputs; supports typical SATA devices such as 3.5" and 2.5" hard drives and SSDs. Note that this cable focuses on delivering 12V and 5V rails to two SATA connectors and does not supply the 3.3V line required by some legacy devices. Not intended for PCIe power needs.

Setup and installation: power down the system and unplug from mains, connect the Molex end to an available PSU Molex socket, and attach the two SATA power ends to your drives. Route the cable neatly behind the case to maintain airflow and avoid interference with fans or other components.

Warranty and support: Astrotek provides a standard limited warranty with this cable and offers technical support to assist with installation, compatibility questions, and setup guidance. Refer to the product packaging or retailer for specific warranty terms and how to contact support.
