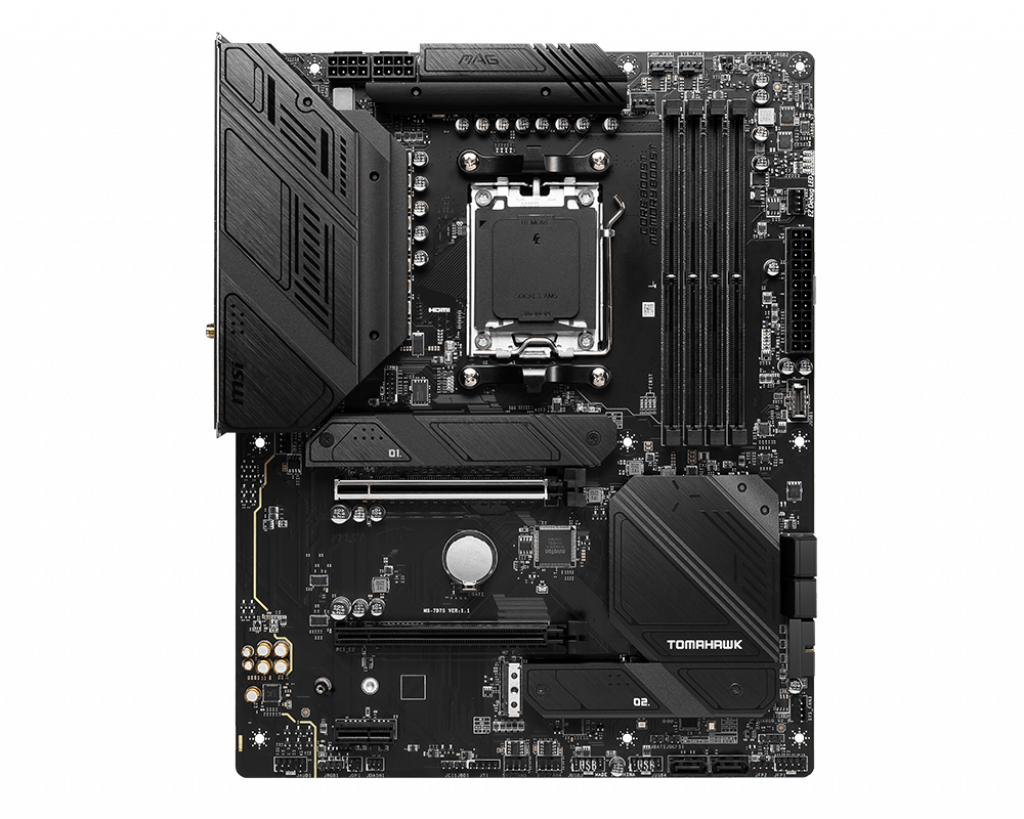

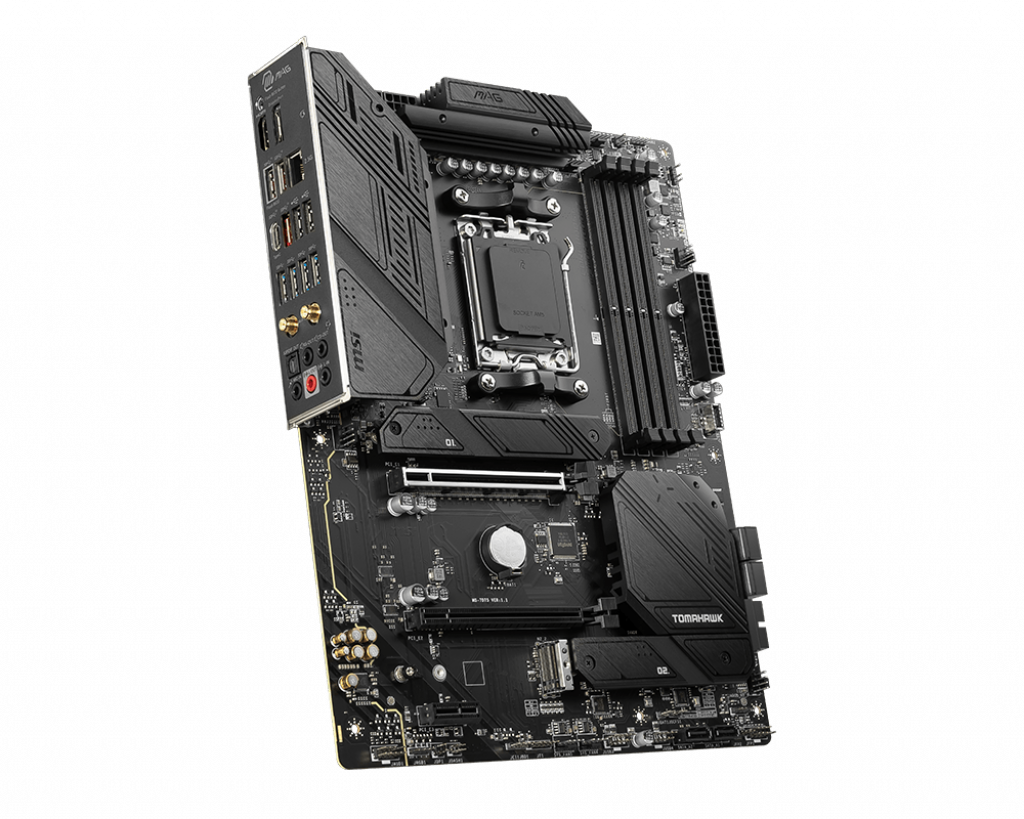

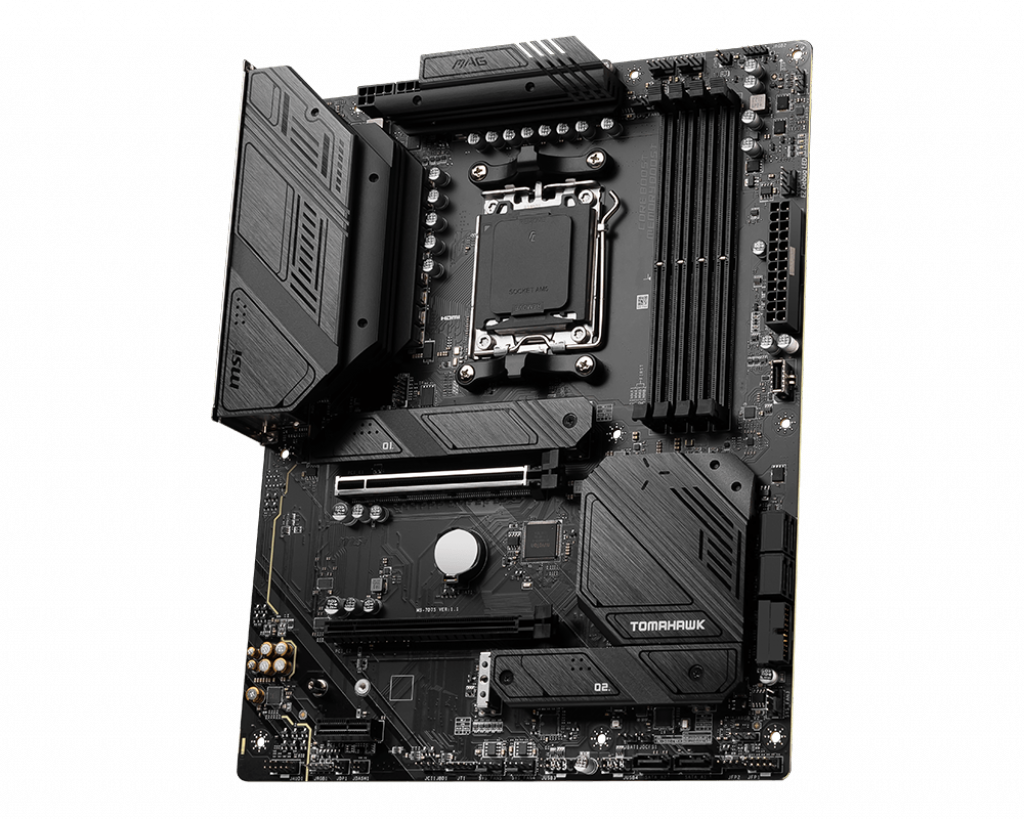

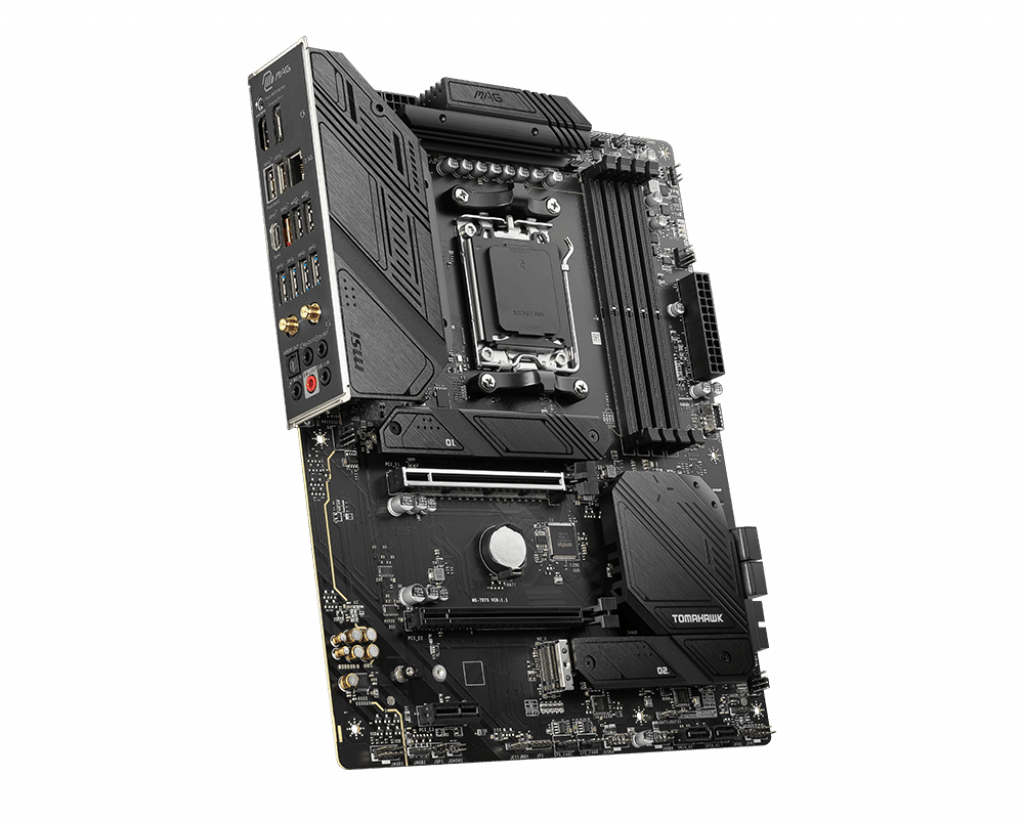

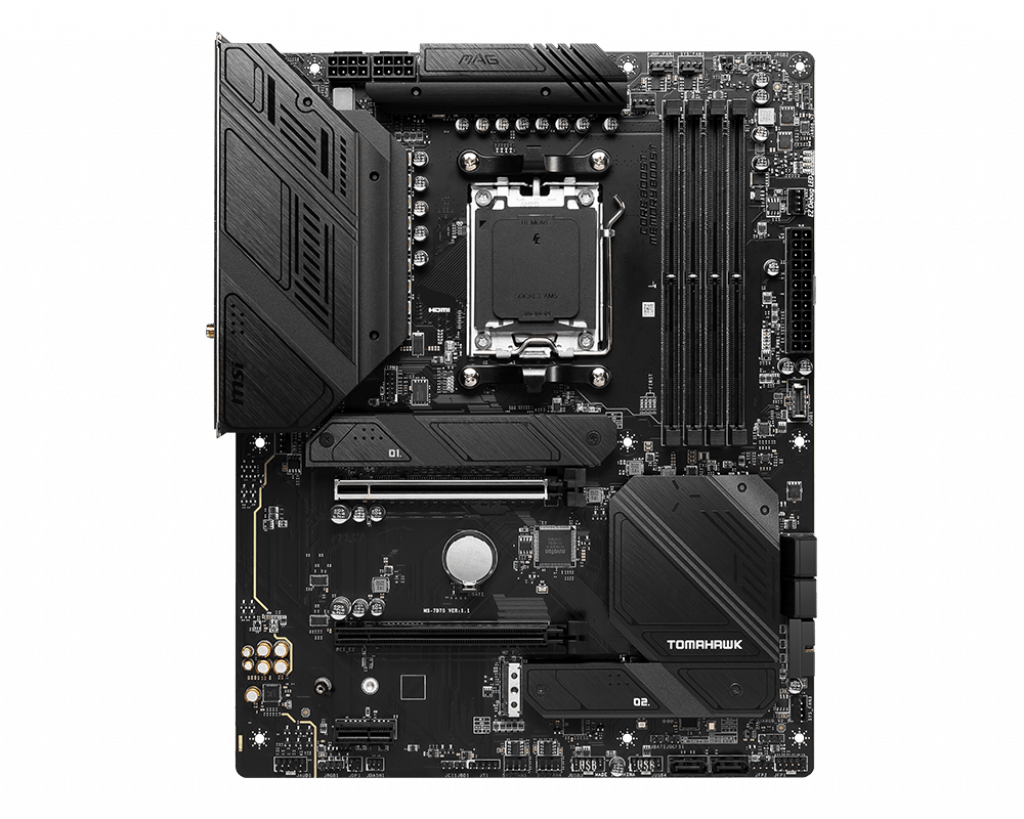

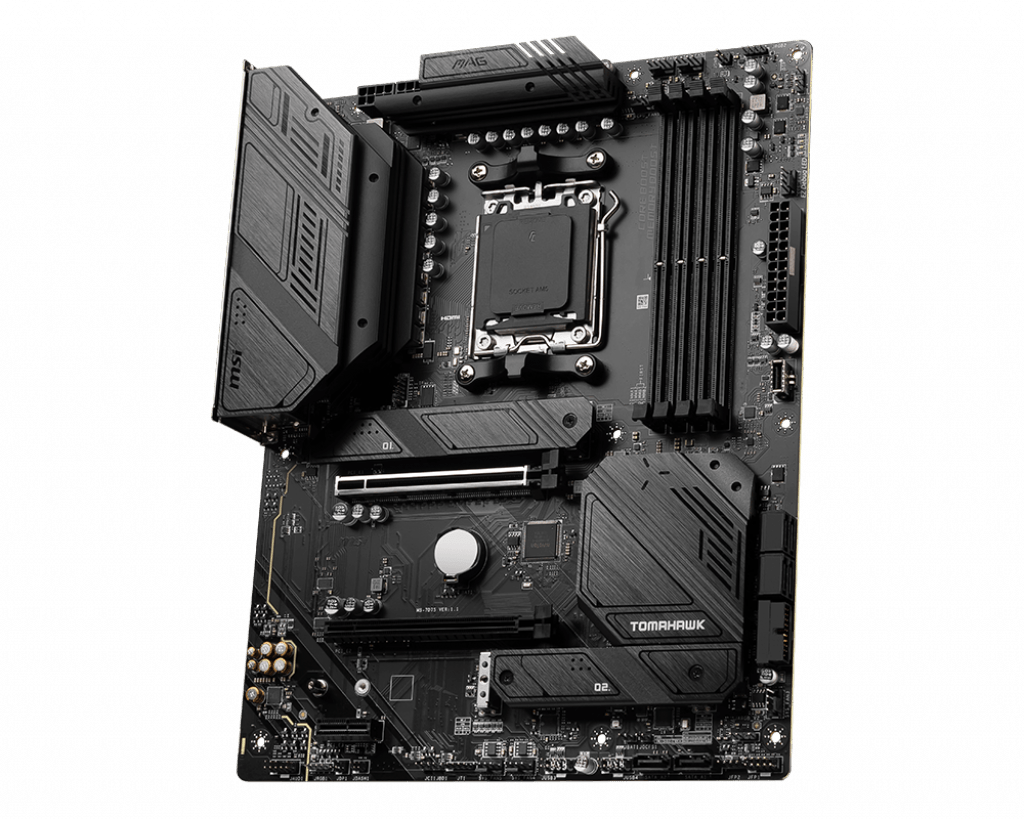

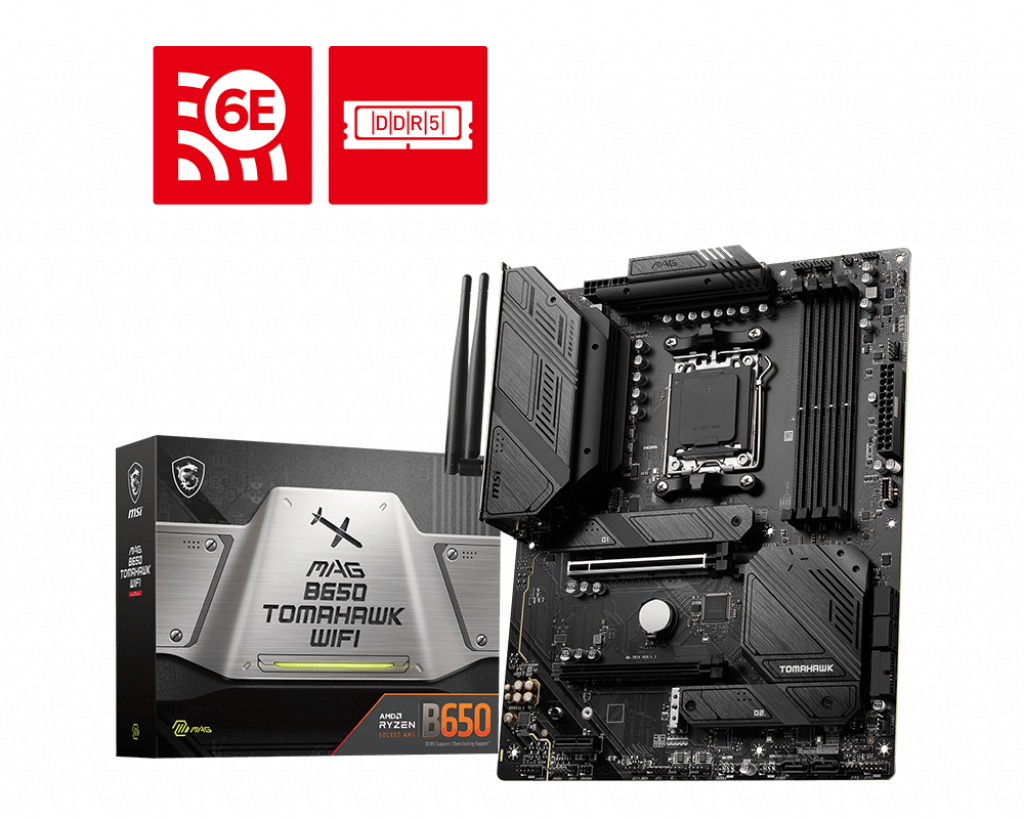

MSI MAG B650 TOMAHAWK WIFI AMD AM5 M-ITX Motherboard, 4x DDR5 ~64GB, 1x PCI-E x16, 3x M.2, 6x SATA, 2x USB2.0, 8x USB 3.2, 1x USB-C

CHIPSET AMD B650
CPU SUPPORT Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5

MEMORY 4x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6600+(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz

ONBOARD GRAPHICS 1x HDMI™
1x DisplayPort
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT 2x PCI-E x16 slot
Support x16/ x4
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 4.0 supports up to x4 (From Chipset)
PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)

STORAGE 3x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G port

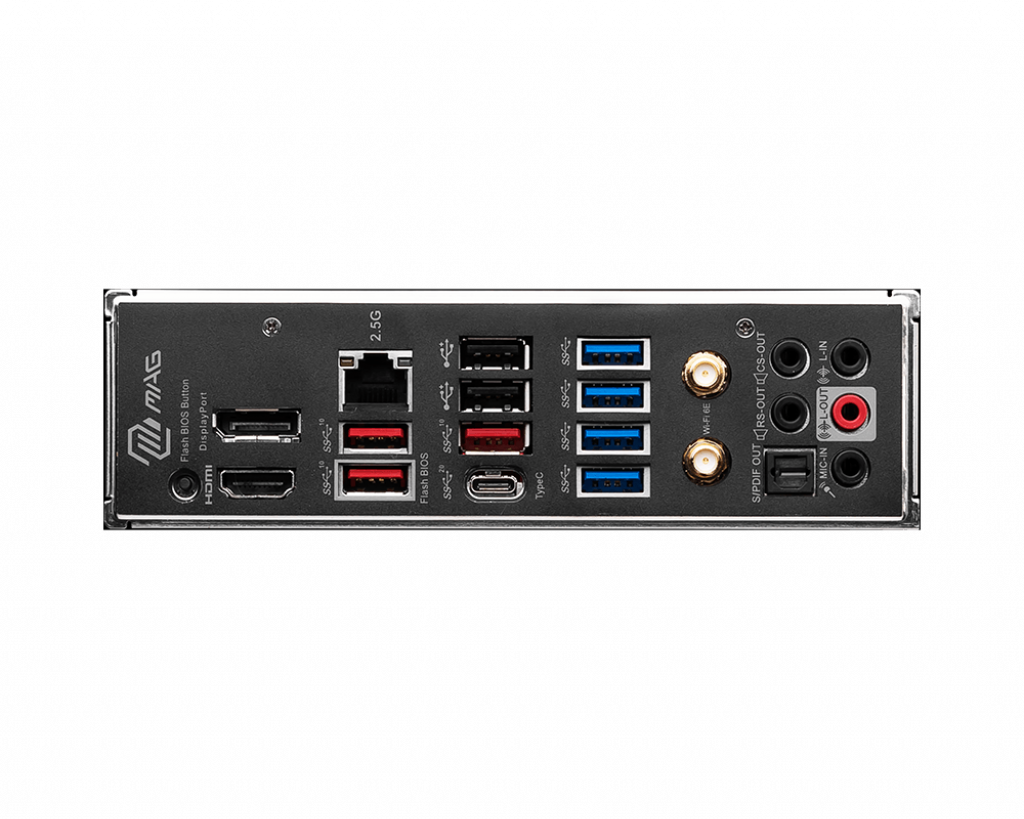

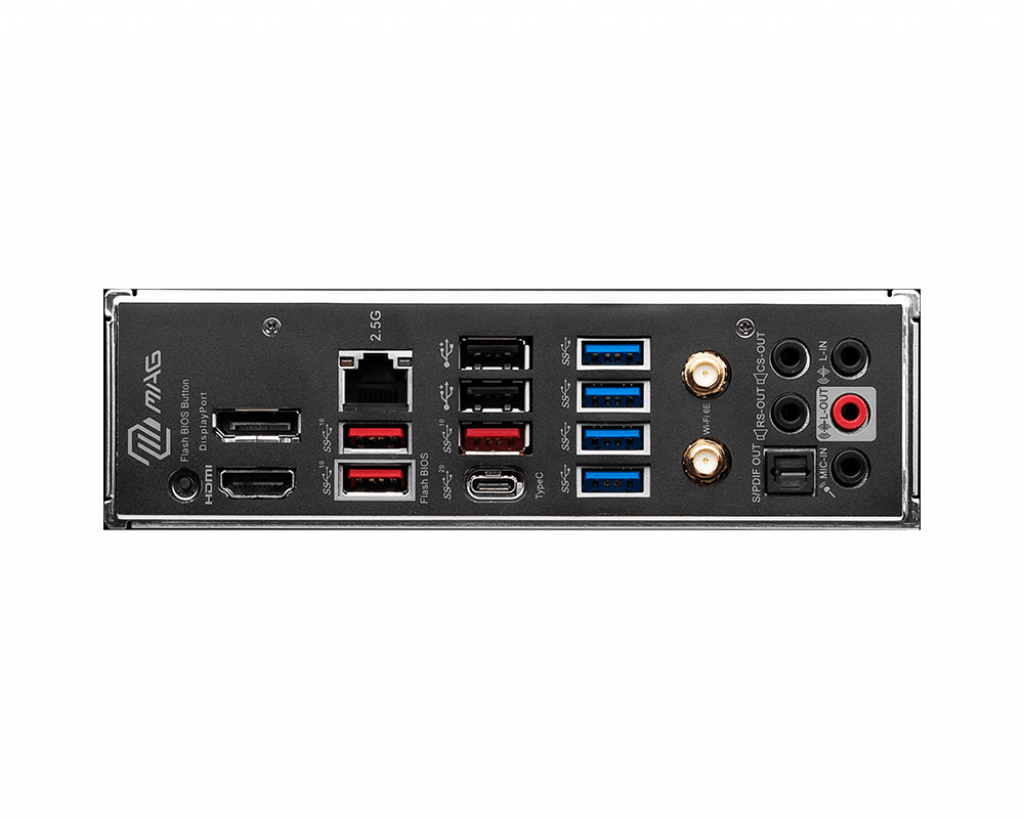

USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)

PCB DIMENSION ATX
243.84mmx304.8mm
