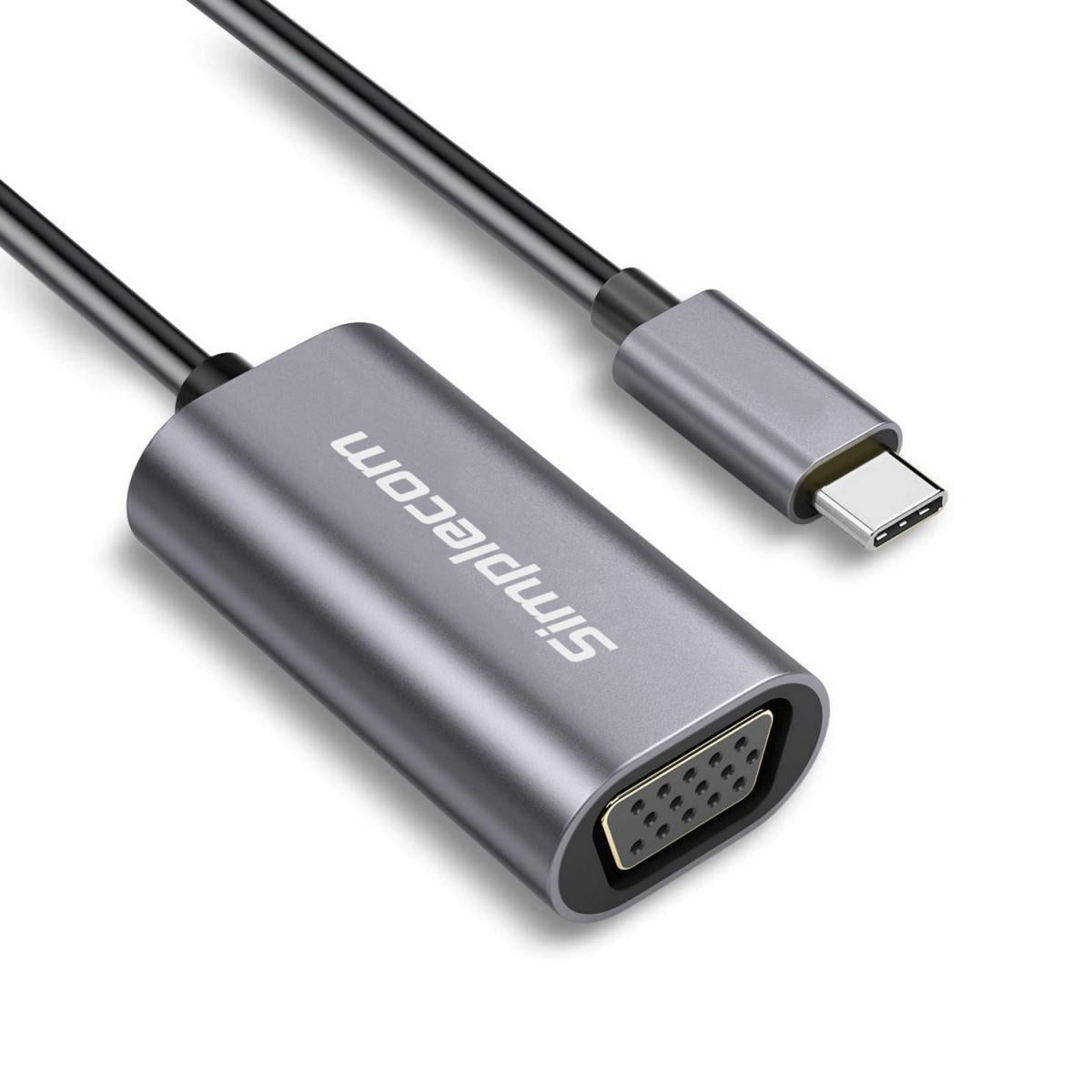

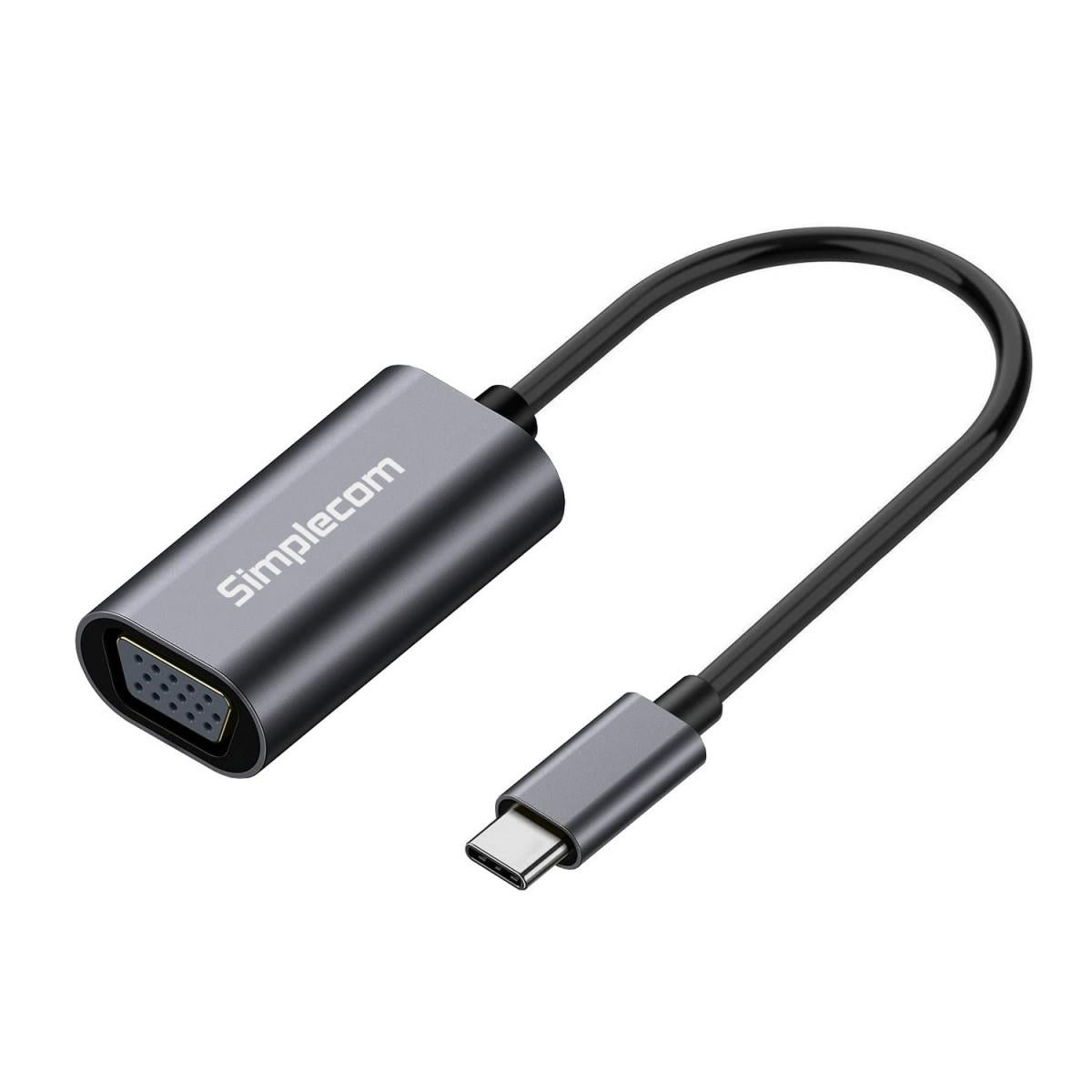

Simplecom DA104 USB-C to VGA Adaptor Full HD 1080p

Designed for mobile professionals, classroom presenters and home‑office users who need reliable external display output from a USB‑C source to a VGA monitor, the Simplecom DA104 delivers crisp Full HD visuals with quick, plug‑and‑play setup. Its compact aluminium enclosure fits neatly in a laptop bag for on‑the‑go use.

Technical specifications

• Video output: VGA (HD‑15) female; maximum resolution 1920×1080 @ 60 Hz; 24‑bit colour depth for sharp text and smooth colour gradients.
• Interface: USB‑C male to VGA; requires DisplayPort Alternate Mode (DP Alt Mode) on the host port.
• Build and length: satin‑finish aluminium housing; integrated cable approximately 15–20 cm for tidy, portable setups.
• Power/driver: plug‑and‑play; no external power supply or drivers needed on supported devices.

Compatibility and system requirements

• Requires a USB‑C host with video output (DP Alt Mode); compatible with VGA displays and standard VGA cables.
• Not intended for USB‑A to VGA or HDMI‑only outputs; no additional software required on compatible systems.

Setup and installation

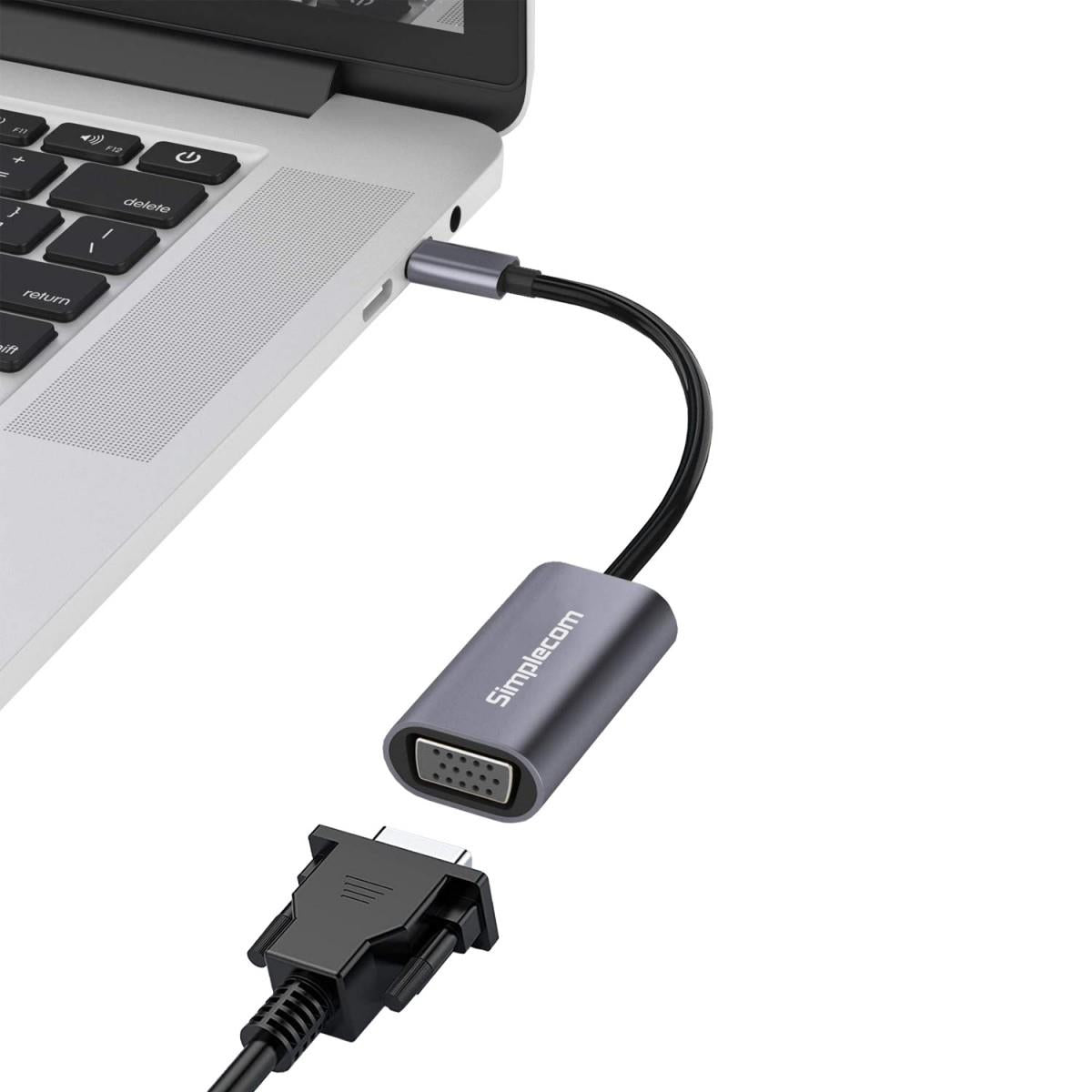

1) Connect the USB‑C end to your device. 2) Attach a VGA cable from the monitor to the DA104. 3) Select the VGA input on the display. 4) Set the host output to 1920×1080 at 60 Hz for optimal clarity.

Warranty and support

The DA104 is backed by the manufacturer’s warranty with dedicated customer support. Refer to the included documentation for terms and how to obtain assistance or a replacement if needed.
